32x40 Large Format Manual Heat Press Machine With Stand 220V,8000W (No Plug)
32x40 Large Format Manual Heat Press Machine With Stand 220V,8000W (No Plug)
Regular price
$2,080.06 USD
Regular price
Sale price
$2,080.06 USD
Unit price
per
Specifications
| Place of Origin | China |
| Main Color | White |
| Main Material | Aluminium |
Dimensions & Weights
| Assembled Length (in.) | 40.60 |
| Assembled Width (in.) | 61.00 |
| Assembled Height (in.) | 73.60 |
| Weight (lbs) | 396.90 |
Product Features
- 1.The heat press machine is 220V,8000W (No Plug)
- 2.Easily adjust the heat press machine certain pressure
- 3.Best selling heat press model for heat transfer and sublimation
- 4. Best selling heat press model for heat transfer and sublimation
- 5.The machine has a matching stand and wheels
- 6.Large format die cast aluminium base plate
- 7. Special high temperature cloth for hot stamping machine covered
- 8. Heat press machine used for cloths Sublimation
- 9. High accuracy of signal indication when press process is completed
- 10.The bottom plate can be pulled out, which provides more operating space and is safer
Description
Manual Heat Press Machine
1. Heat press machine suitable for larger area heat transfer press operations
2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely
3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect
4.For T-shirts, mouse pads, license plates, magnetic material and more
5. Special high temperature cloth for hot stamping machine covered
6. High accuracy of signal indication when press process is completed;
High Pressure Manual Heat Press Machine
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace;
The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable;
Full digital temperature and time display, temperature error(±2℃);
Designed according to human engineering , machine is easy to operate with even pressure
Open and close heating plate, easy to use
Pressure is adjusted by connecting rod, the adjustment torque is small and the range is large

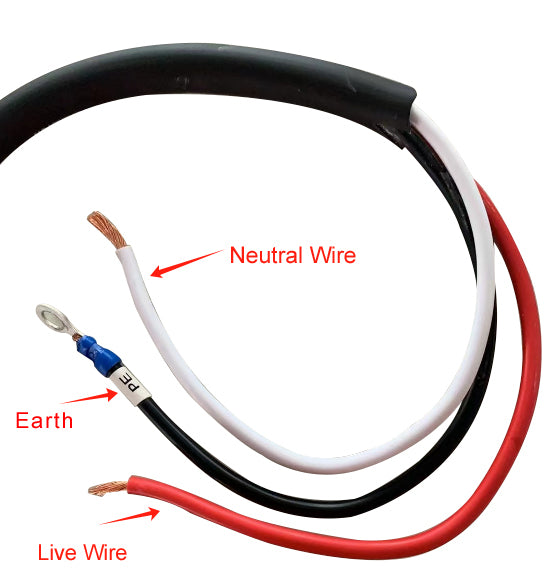

No plug
Different Charge Plug Can Be Available Depends on Customers Requirement
Technical Details
| Voltage(V): | 220V single phase |
| Power(KW): | 8 |
| Temperature(C): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 469.67 |
| Packing size(in'): | 54.3'' x 42.1'' x 25.4'' |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 32' x 40'' (80 x 100cm) |
Time Requirements of Different Materials
| Pure cotton | 15s-25s |
| Polyester | 40s |
| Chemical fiber | 10s-40s |
| Pearl board | 60s-100s |
| Metal pendant | 60s |
| Mousepad | 50s |
| Vitrolite | 180s |
| Key ring pendant | 100s |
| Ceramics | 180s |
| Material | Temperature |
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
